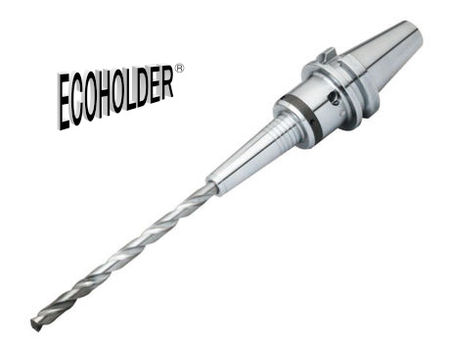

PHZ・SSlim Hydro "R" Zero Runout Adjustment Holder

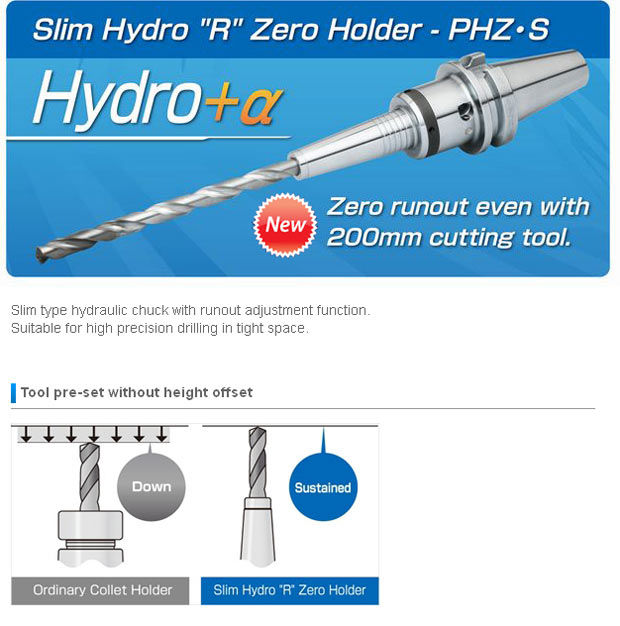

Zero runout even with 200mm cutting tool.

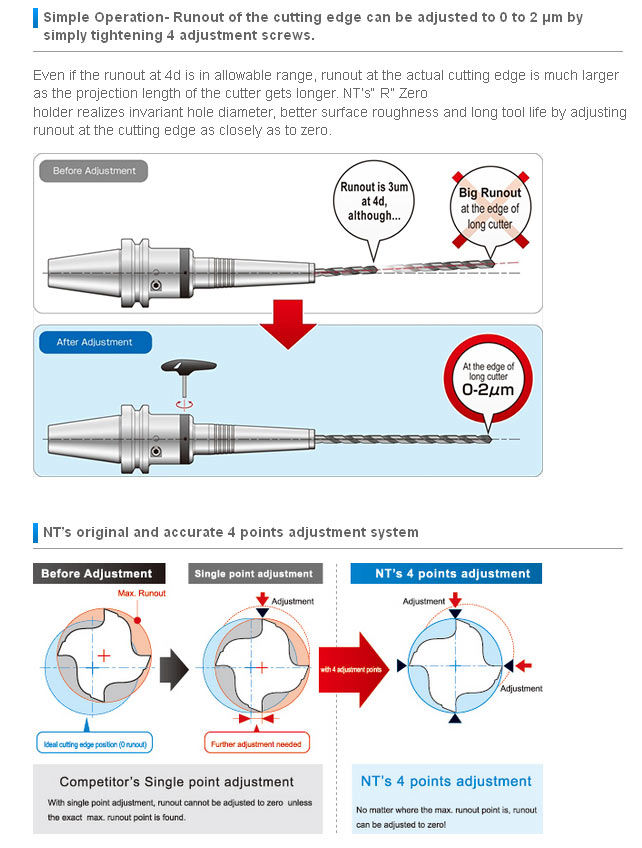

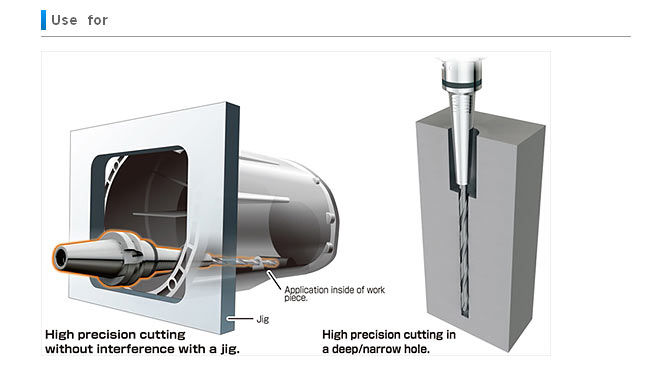

Slim Hydro Chuck with "R" zero runout adjustment function. Reduce runout to 0-2 microns in under 60 seconds! Suitable for high precision cutting in a deep/narrow hole.

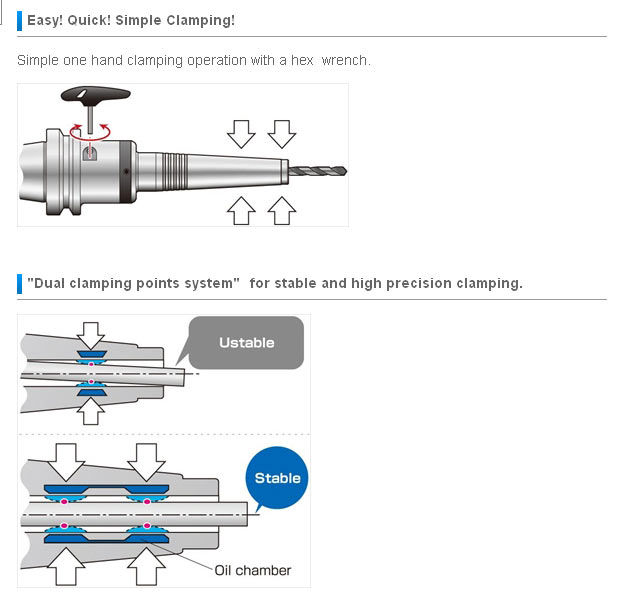

Clamping takes 5 seconds, with no additional equipment required.

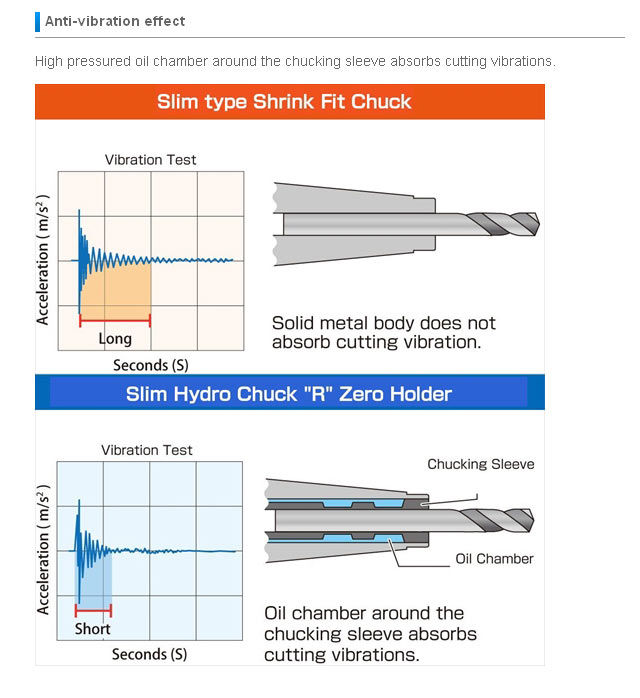

The hydraulic well surrounding the bore dampens cutting vibrations, greatly reducing chattering for a smoother finish!
~Available in BT, CAT 40 and CAT 50 & HSK shank types
~Other shank types available upon request
~Custom sizes are also available
