Collet/Sleeve
・MC Collet Series
Accessory Code: MC Collets
About This Product
*S/ Item is Special/Custom Item. Please contact NT USA for questions at 615.771.1899. To place an order please contact your regional distributor.
Straight type collet for Milling Chucks.
Used in the CT-A and CT-SA Milling chucks

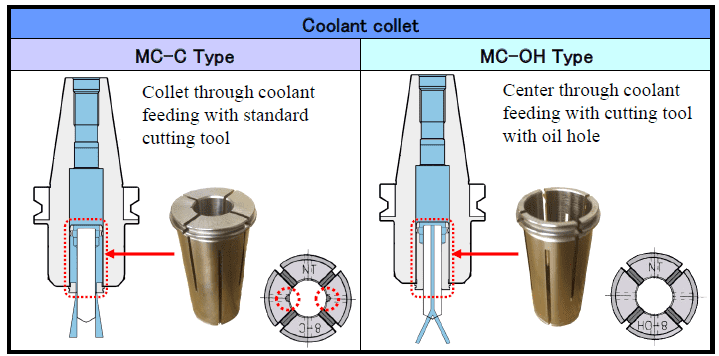

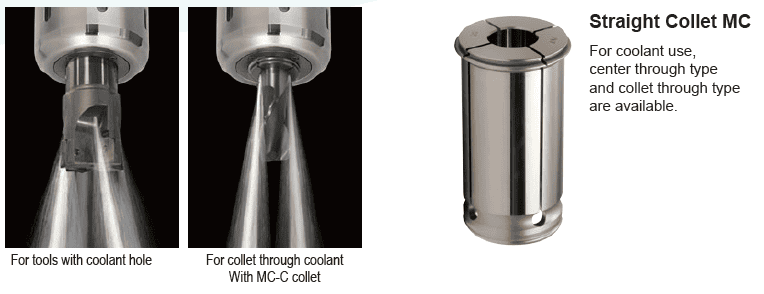

Available in through cutting tool coolant (OH type) and Collet through coolant feeding (C type).
Available in Metric → Metric, Inch → Inch, Metric → Inch, and Inch → Metric.
Direct chucking milling chucks can have the versatility to hold smaller cutting tools.
Picking the right size:
The left side is the direct chucking size of the holder, the right side is the reduced size, the end is coolant type (OH for sealed, C for coolant thru collet).
example: MC0750-6-OH
0750 = .750 inch and goes to the CT0750 holder.
6 is 6.0mm and is the inner diameter of the collet
OH is the coolant type, Sealed for coolant thru tool in this case.
